Specifications
Golf carts

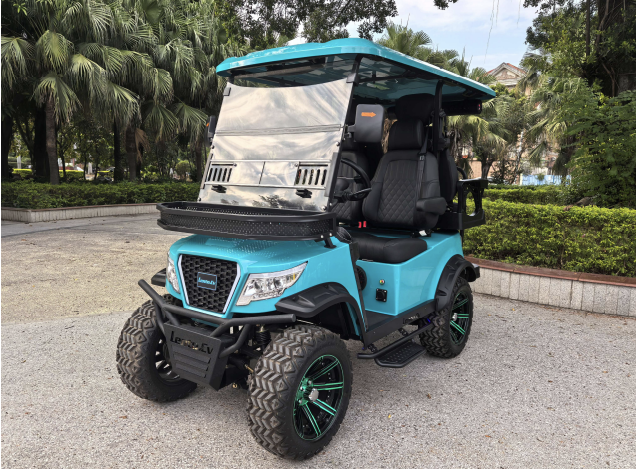

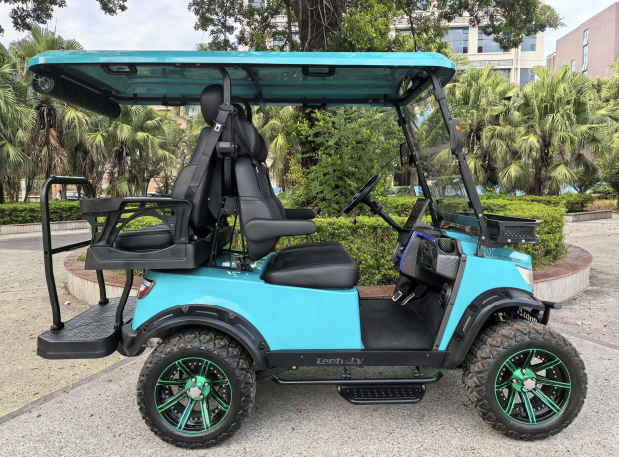

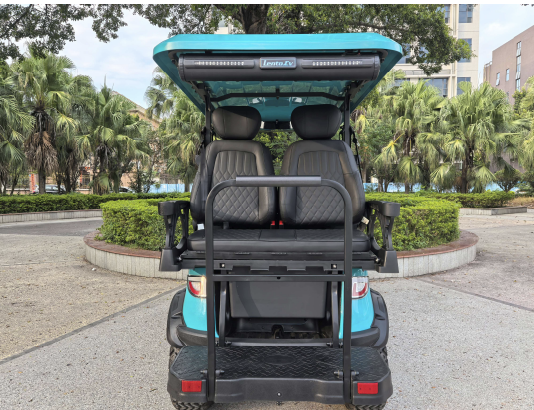

Specifications – 2+2 Golf Cart (Lithium Iron Phosphate Battery)
–Body & Dimensions
Wheelbase: 1670 mm
Track Width: Front 950 mm / Rear 1020 mm
Minimum Ground Clearance: 190 mm (front) / 170 mm (rear)
Package Dimensions (L × W × H): 2900 × 1340 × 2060 mm
Load Capacity: 400 kg
Net Weight: 580 kg
Seating: Single seats with headrests & foldable armrests
Rear Pedal: Molded
Front Basket & Entry Grab Handles: Included
–Dashboard & Features
Display: 12.95″ LCD Dashboard with Speedometer, Odometer, Battery Indicator, CarPlay, Wireless Charging
USB Charging Ports: Yes
Sound System: 2 × 6.5” speakers + 2 × 4” speakers
Lighting: Full LED system with Headlights, Taillights, Turn Signals, Hazard Lights, and Daytime Running Lights
Side Mirrors: Includes turn-signal indicators
Windshield: Foldable
Reverse Alarm: Yes
Seat Belts: 3-point safety belts
Front Bumper, Side Step, Rear Grab Bar: Included
– Power & Performance
Motor: 5KW AC Drive Motor
Controller: 400A AC Controller
Charger: On-board high-frequency battery charger
Max Speed: 45 km/h
Max Grade Ability: 30%
Battery Range: 60–80 km
Charging Time: 8–10 hours
Battery Type: 48V 150Ah Lithium (5-year guarantee)
Speed Settings: High & Low
–Steering & Braking
Turning Radius: ≤ 4m
Steering System: Rack & Pinion with Electric Power Assist
Braking System: Hydraulic, 4-wheel disc brakes
Brake Distance: ≤ 6m
Parking Brake: Electromagnetic
Full Load Parking Slope: 30%
Chassis & Suspension
Frame: Aluminum
Transaxle: Aluminum reducer (Speed Ratio 1:12.31)
Front Suspension: A-arm
Rear Suspension: Trailing arm with coil spring and hydraulic shocks
–Wheels & Customization
Tires: AT Tires 23×10.5-14
Rims: Standard aluminum
Customizable Elements: Steering wheel, bumper, logo light, side edge, rim cover

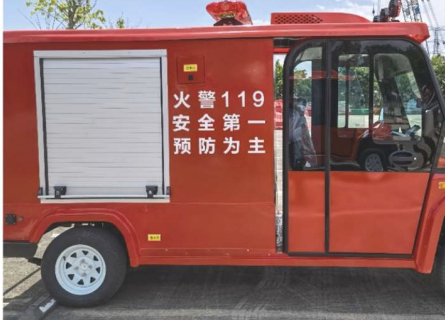

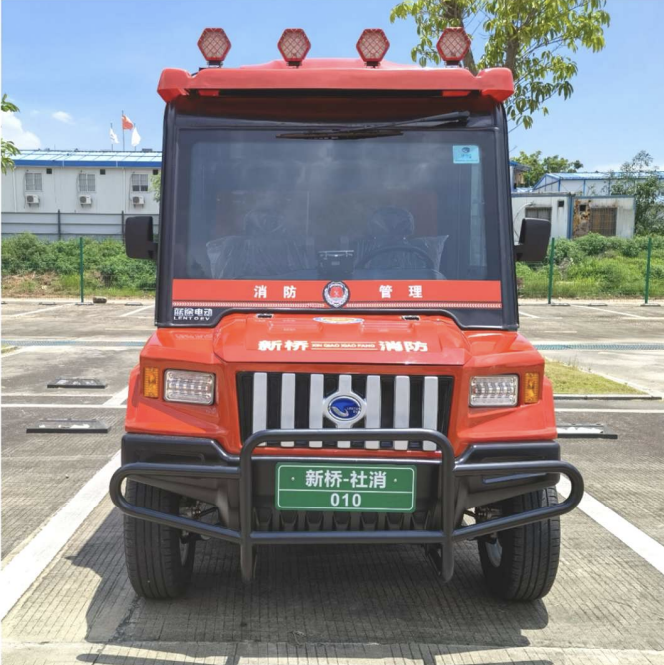

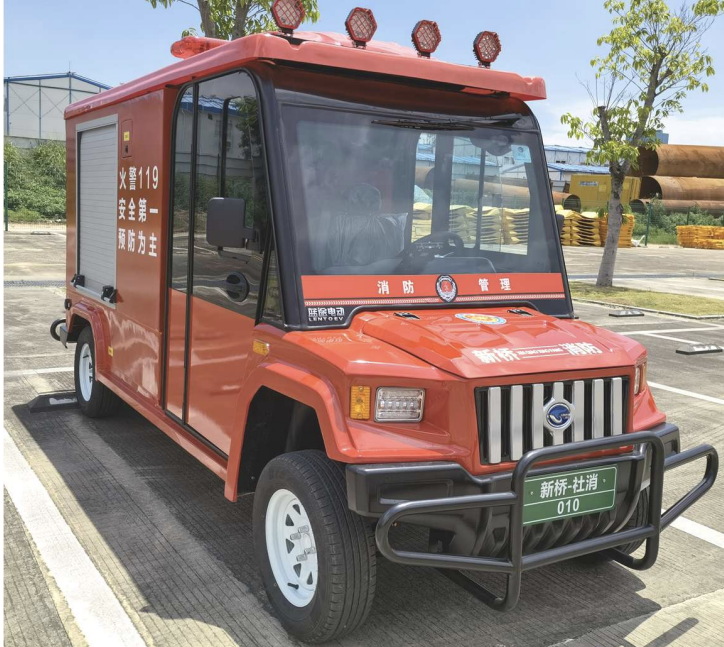

Fire trucks
Technical Specifications
Maximum Passenger Capacity: 2 persons
Dimensions: 4100 × 1500 × 1960 mm (with police light: 2130 mm)
Front/Rear Wheel Track: 1295 mm / 1235 mm
Wheelbase: 2800 mm
Curb Weight: 1300 kg
Top Speed: 30 km/h
Max Range:
o ≥100 km (composite driving condition, lead-acid battery)
o ≥110–120 km (composite driving condition, lithium battery)
Air Conditioning: Overhead high-power heating & cooling A/C
Charging Time: 6–8 hours
Max Gradeability: 30%
Instrument Panel:
o Custom-developed multifunction color LCD display
o Mileage, intuitive battery indicator, voltage
Dashboard Display:
o Full-size HD multimedia LED digital panel
o USB phone charging port, Bluetooth audio, voice playback system
Reversing Aid: HD rear-view camera system
Fire Alarm Lights: 4-mode alarm with loudspeaker
Fire Booster Pump: Electric start, rail-mounted movable fuel pump, 0.5 MPa (500 kPa)
Fire Hose Spray: 20m standard length, 30m lift
Water Tank Capacity: 1000L stainless steel onboard tank
Power System
Charger: 72V / 25A fully automatic charger
Controller: 72V / 350A AC intelligent variable frequency controller
Motor: 72V / 7.5 kW AC asynchronous variable frequency motor
o Battery: 72V 150Ah maintenance-free battery (1-year warranty)
o 72V 150Ah LiFePO₄ lithium battery (3-year warranty)
Driving & Handling
Powertrain: Rear-wheel drive, gear ratio 1:15
Braking System:
o Front disc/rear drum dual-circuit hydraulic brakes
o Electronic vacuum-assisted braking system
o Parking brake device
Steering System: Electric power steering
Front Axle & Suspension: MacPherson suspension (Φ12 coil spring + hydraulic shock absorber)
Rear Axle & Suspension: Integral rear axle, heavy-duty leaf spring suspension front and rear
Tires: 185/70 R13 vacuum tires
Exterior & Structure
Paint: High-grade automotive paint, computer color matching, professional spray equipment
Chassis: Double-layer chassis, steel floor with patterned aluminum covering
Frame & Body: Welded high-quality carbon steel square tube, electrophoresis + anti-rust baking paint
Lights & Signals: LED headlights, turn signals, combination tail lights, electric horn, reverse voice alert
Roof: ABS engineering plastic hard top
Windshield: Laminated automotive safety glass
Wipers: Electric windshield washer Seats: PU leather seats
